Has your home been around since 1902? We sure have. Whether you’re installing a new HVAC system in a historic home or you just need to heat and cool a small space that you don’t use often, you can turn to Carrier. We offer a full line of high-efficiency ductless air conditioners and ductless heat pumps that can fit your needs without compromising the integrity of the space or comfort. Install a ductless mini split system – it fits any space, any need, any use.
The Infinity series is all about choice. You can choose a heat pump-for cool-season heating and warm-season cooling-or an air conditioner unit. You can even opt for a system that’s designed for open floor plans or multiple rooms.
The Performance series is all about choice. You can choose a heat pump-for cool-season heating and warm-season cooling-or an air conditioner unit. You can even opt for a system that’s designed for open floor plans or multiple rooms.
Presenting our most economical way to bring cooling and heating to room spaces you’d like to turn into your comfort zones. Our Comfort series includes your choice of an air conditioner for cooling or a heat pump for cool-season heating comfort.

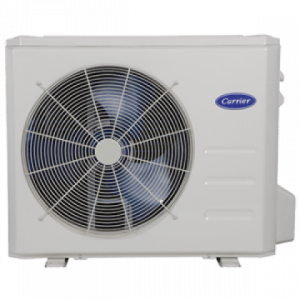

There’s nothing more efficient, when paired with the 40MPHA indoor unit, this system has SEER rating at 42 with 15 HSPF, making it ENERGY STAR® certified. The new, ultra-efficient 38MPRA outdoor unit with built-in basepan heater offers year-round comfort. Its impressive cooling operating range maintains consistent capacity from -22° F to 122° F. On the other end of the spectrum, the systems high heating capability is exceptional, running 100% to -22° F to 86° F temperature range. No matter the temperature outside, this system can handle the extremes.
- 100% Heating Capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating Capacity at -22° F (-30° C)
- Inverter Compressor
- Up to 42.0 SEER cooling efficiency
- Up to 15.0 EER heating efficiency
- Available in 208/230V
- Sizes: 09 / 12
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 55 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

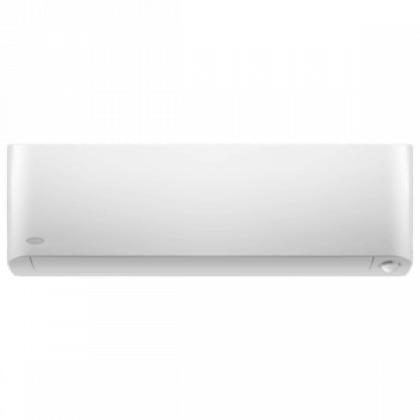

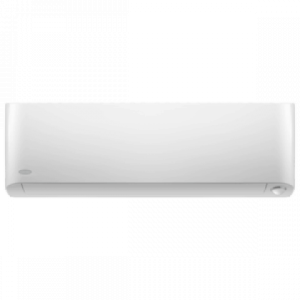

At 42 SEER, there’s nothing more efficient when paired with its outdoor single zone counterpart 38MPRA. The High Wall is flexible to fit any application from 38MGRA single zone to the 38MGR multi-zone system. Talk about controllability, the new 40MPHA indoor unit features either built-in Wi-Fi® that gives you control from virtually anywhere or compatibility with third party thermostats when the 24V Interface is installed. The High Wall also offers a Relative Humidity Sensor to customize the humidity level for more comfortable air and an occupancy sensor that senses a person in a room and can direct airflow either toward or away from that person.
- Available in 208/230V
- Sizes: 09 / 12
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Up-down / right-left louver control (fixed or swing)
- Relative Humidity Sensor
- Intelligent Eye (occupancy sensor)
- Built-in Wi-Fi®
- ECO Mode
- Quiet indoor operation, as low as 29 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

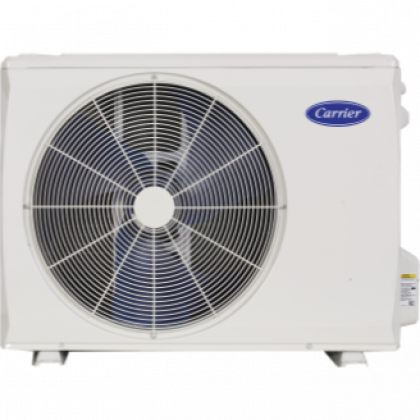

This compact ductless model is simple to install, only wires and piping need to run between the indoor and outdoor units. The 38MARB model also features premium energy efficiencies of 28.1 SEER and 13 HSPF making it a great choice for retrofit applications.
- Type: Single-zone
- Overall Efficiency: All sizes ENERGY STAR® certified
- Cooling Efficiency: Up to 28.1 SEER
- Heating Efficiency: Up to 13.0 HSPF
- Sound Level (As Low As): 54 decibels
- Application: Residential
- Wireless Remote: Not applicable
Designed for versatility and year-round comfort, the 38MAR achieves full heating capacity even as temperatures outside dip to 5° F (with the right combination of model size and matched indoor unit). This quiet, compact heat pump pairs with a variety of indoor units for a budget-friendly and flexible solution to your duct-challenged comfort needs. Part of our Performance™ Series, this model really delivers with features like variable speed operation for extra efficiency and reduced sound.
- 100% Heating Capacity at 5° F (-15° C)
- Inverter Compressor
- Up to 25.0 SEER cooling efficiency
- Up to 12.0 HSPF heating efficiency
- Available in 115V and 208/230V
- Built-in basepan heater
- Piping length 82-164′ depending on unit capacity
- Refrigerant leakage detection
- Condenser high-temperature protection
- Quiet outdoor sound operation, as low as 52.5 decibels
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

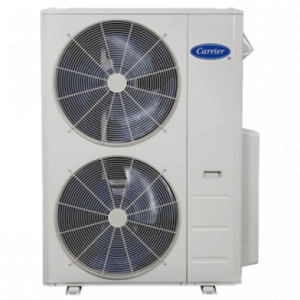

If you happen to live in a home without ductwork or have a converted area for a living/working space, you’ll appreciate this multi-zone heat pump. The MGR System can provide year-round comfort, cooling for those hot summer days and warmth the rest of the year, even when temperature dips down to 5° F at full heating capacity (with the right size and system combination).
As a multi-zone, you can use up to five multiple style indoor units supported by just this one efficient, outdoor Inverter compressor unit. For quiet comfort in a multi-space application, it can’t be beat.
- 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
- Inverter Compressor
- Up to 23.8 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Sizes: 18 / 24 / 30 /36 / 48
- Available in 208/230V
- Built-in Basepan Heater
- Connects two to five multiple style indoor units (Performance™) off a single outdoor unit
- Condenser high temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 62 decibels
- Total piping length 131 ~ 328 ft. (40 ~ 100 m) depending on unit capacity
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Performance™ Series ductless systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

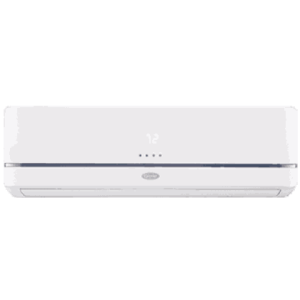

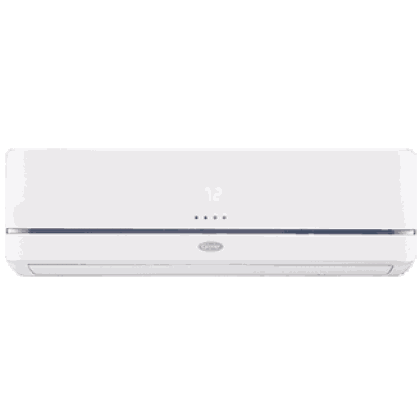

The 40MAQ High Wall indoor unit can be matched with the 38MAR heat pump as part of the MA Single Zone System or matched with the 38MGR heat pump as part of the MG Multi-Zone System.
- Available in 115V and 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Four indoor unit fan speeds
- Turbo Mode
- Sleep Mode
- Follow Me (senses temperature at handheld remote)
- Quiet indoor sound operation, as low as 27 decibels
- Heating Setback (46° F Heating Mode)
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
- Control Standard Features
- Wireless Remote Controller standard
- Optional Wired Remote Controller (Timer Function)
Optional Features
Condensate Pump (115V and 230V optional)
Insulated 25′ Lineset
Performance™ Series Ductless Systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

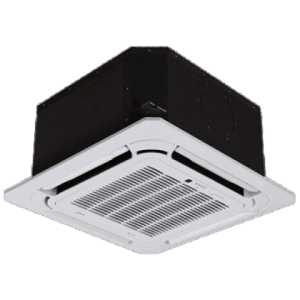

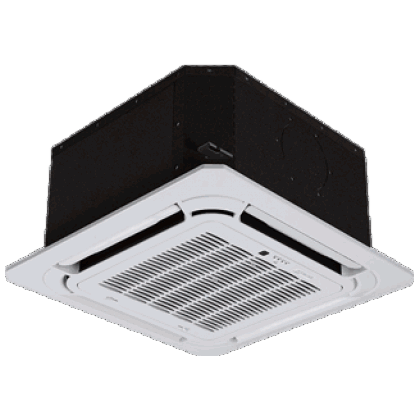

The Carrier Performance™ Series 40MBCQ Cassette blends into your over-head space to deliver quiet, efficient comfort to your new or remodeled space. The perfect complement for either a single or multi-zone ductless system, it offers the convenience of a temperature-sensing handheld remote and customized control over your comfort with three available fan speeds.
- Sizes: 09 / 12 / 18
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical or horizontal installation
- Auto-restart function
- Louver control (fixed or swing)
- Three fan speeds
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 34 decibels
- Built-in condensate lift pump
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Performance™ Series Ductless Systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

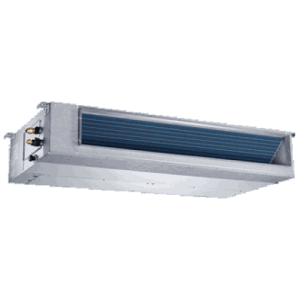

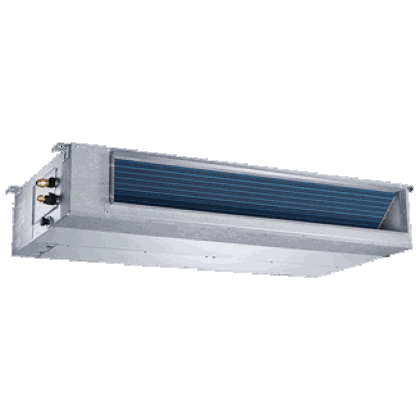

Carrier puts comfort where you need it with the Performance™ Series 40MBDQ Ducted indoor unit. Designed to fit in-ceiling, under-the floor or vertically in the wall, it’s perfect for either a single or multi-zone ductless system. This model offers the convenience of a temperature-sensing handheld remote as well as customized comfort with three available fan speeds. For spaces requiring longer duct runs, we offer a high-static version that’s compatible with the 38MBR Single Zone heat pump.
- Sizes: 18 / 24 / 36 / 48
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical or horizontal installation
- Up to 0.64 in WG
- Rear or bottom return
- Outside air intake
- Built-in condensate lift pump
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 35 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Performance™ Series Ductless Systems offer that perfect balance between budget limits you may have today and your desire for energy savings and comfort options.

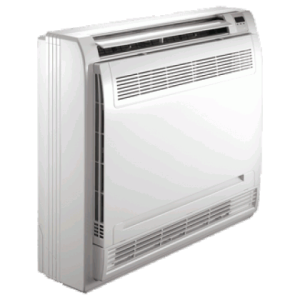

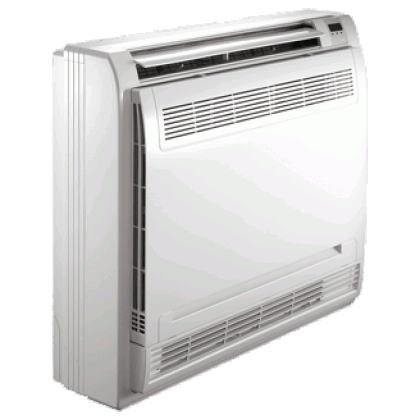

The perfect addition to your new or remodeled space, the Carrier Performance™ Series 40MBFQ Floor Console delivers quiet, heating and cooling comfort. This traditional Floor Console is a key component to a single or multi-zone comfort system. It offers the convenience of a temperature-sensing handheld remote and customized control over your comfort with three available fan speeds.
- Sizes: 09 / 12
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Up to 0.4 in WG
- Auto-restart function
- Louver control (fixed or swing)
- Three fan speeds
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 30 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

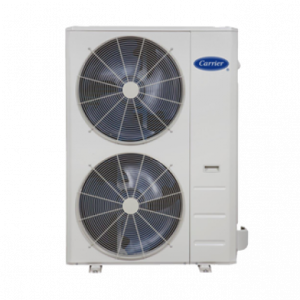

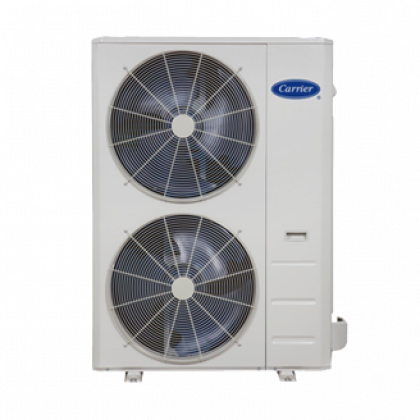

Slim, trim and built for comfort, the Preferred™ Series 38MBR ductless single zone heat pump is the perfect choice for heating and cooling your new or converted space. A fitting complement to our 40MBDQ high static Ducted indoor unit, this model knows how to keep its distance with up to 213 feet refrigerant line length. It knows how to perform as well with an Inverter-driven, compressor that delivers quiet, energy-saving heating and cooling.
- Type: Single Zone
- Overall Efficiency: Not ENERGY STAR® certified
- Cooling Efficiency: Up to 17.4 SEER
- Heating Efficiency: Up to 10.5 HSPF
- Sound Level (As Low As): 62.5 decibels
- Application: Commercial
- Wireless Remote: Not Applicable

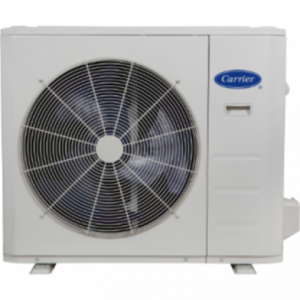

Ductless systems are inherently economical to operate. The 38MBRB Performance™ heat pump is enhanced further with an inverter that adjusts to the output load resulting in a more efficient system during all seasons. This unit optimizes energy use in a wide range of outdoor temperatures, with a cooling range up to 122°F and a heating range down to -22°F you’ll be comfortable inside no matter the temperature outside.
- Type: Single Zone
- Overall Efficiency: Not ENERGY STAR® certified
- Cooling Efficiency: Up to 16.5 SEER
- Heating Efficiency: Up to 10.4 HSPF
- Sound Level (As Low As): 62.5 decibels
- Application: Commercial
- Wireless Remote: Not Applicable
The 38MHRBQ heat pump lives up to our Comfort™ series name, quickly getting up to speed to provide responsive heating and cooling. The highest efficiency model in this series, it’s the ideal solution for affordable, space-saving comfort. Properly matched with a Carrier high wall indoor unit, the 38MHRBQ can make all the difference in a room addition, converted space, or anywhere your ducted system leaves you less than comfortable.
- Sizes: 09 / 12 / 18 / 24
- Available in 115V and 208/230V
- Refrigerant leakage detection
- Auto-restart function
- Condenser high-temperature protection
- Quiet outdoor operation, as low as 50.5 decibels
- Aluminum Golden Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration

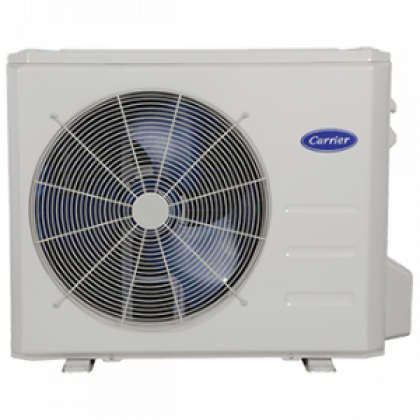

The 38MHRBC air conditioner lives up to our Comfort™ series name, quickly getting up to speed to provide responsive relief to summer’s heat. The highest efficiency model in this series, it’s the ideal solution for affordable, space-saving comfort. Properly matched with a Carrier high wall indoor unit, the 38MHRBC can make all the difference in a room addition, converted space, or anywhere your ducted system leaves you less than comfortable.
- Sizes: 12 / 18 / 24
- Available in 115V and 208/230V
- Refrigerant leakage detection
- Auto-restart function
- Quiet outdoor operation, as low as 50.5 decibels
- Aluminum Golden Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Comfort™ Series ductless heat pumps are designed with your budget in mind.

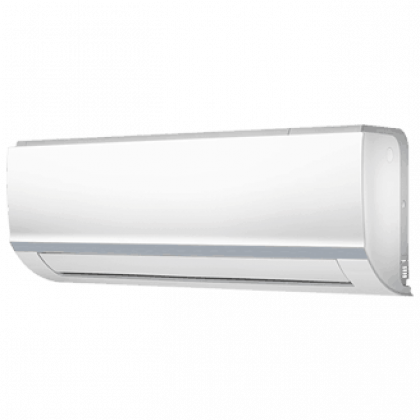

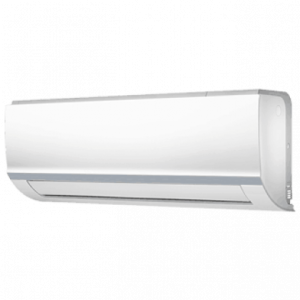

The ideal blend of affordability and effectiveness, our Comfort™ Series 40MHHQ High Wall Ductless indoor unit is a solid choice for heating and cooling a new or converted space. Compatible with either a single or multi-zone ductless heat pump, it offers the convenience of a temperature-sensing handheld remote and customized control over your comfort with four available fan speeds and louvers that can either move or remain stationary.
- Sizes: 09 / 12 / 18 / 24
- Available in 115V and 208/230V
- Auto-restart function
- Turbo Mode
- Four fan speeds
- Sleep Mode
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Up-down louver control (fixed or swing)
- Filter is removable from the top
- Improved serviceability with easy access to fan and electrical connections
- Quiet indoor operation, as low as 27 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
Comfort™ Series ductless air conditioners are designed with your budget in mind.
The ideal blend of affordability and effectiveness, our Comfort™ Series 40MHHC High Wall Ductless indoor unit is a cool choice for air conditioning in a new or converted space. Compatible with the 38MHRC Single Zone Ductless outdoor unit, it offers the convenience of a temperature-sensing handheld remote and customized control over your comfort with four available fan speeds and louvers that can either move or remain stationary.
- Sizes: 09 / 12 / 18 / 24
- Available in 115V and 208/230V
- Auto-restart function
- Turbo Mode
- Four fan speeds
- Sleep Mode
- Follow Me (senses temperature at handheld remote)
- Up-down louver control (fixed or swing)
- Filter is removable from the top
- Improved serviceability with easy access to fan and electrical connections
- Quiet indoor operation, as low as 27 decibels
- Aluminum Blue Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
